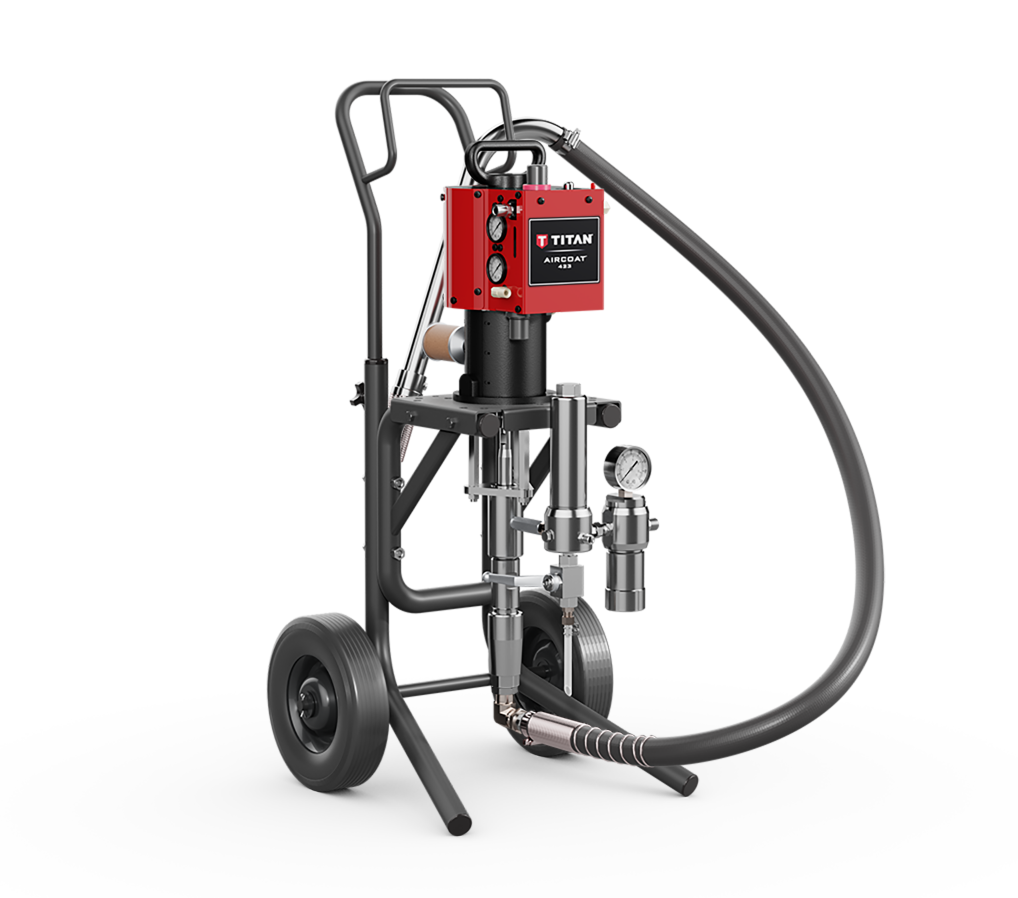

PowrCoat 423 Pneumatic Airless SP

Description

Titan air assisted Pneumatic sprayers (AirCoat) uniformly atomized material at a relatively low pressure (from about 870 PSI depending on the material) using a piston pump or a diaphragm pump. This is ensured by the central air guide (air cap) which is fitted immediately at the tip bore and surrounds the sprayed medium like a coat. In comparison to Airless and Air spraying, the overspray is greatly reduced.

• Material savings of up to 15% against the Airless process and of up to 40% compared with air atomisation
• Highest precision Tips with improved geometry of the tip core, reducing tip and pump wear. The spray result is soft and uniform. Fast application with very low overspray,
• providing increased paint savings, increased productivity & long service life.
• Soft spray pattern, with high transfer efficiency.
• Precise adjustment for greater control with Superior performance and finishing results.
• Ergonomic and well-balanced gun with light trigger pull & Tool-free filter removal.

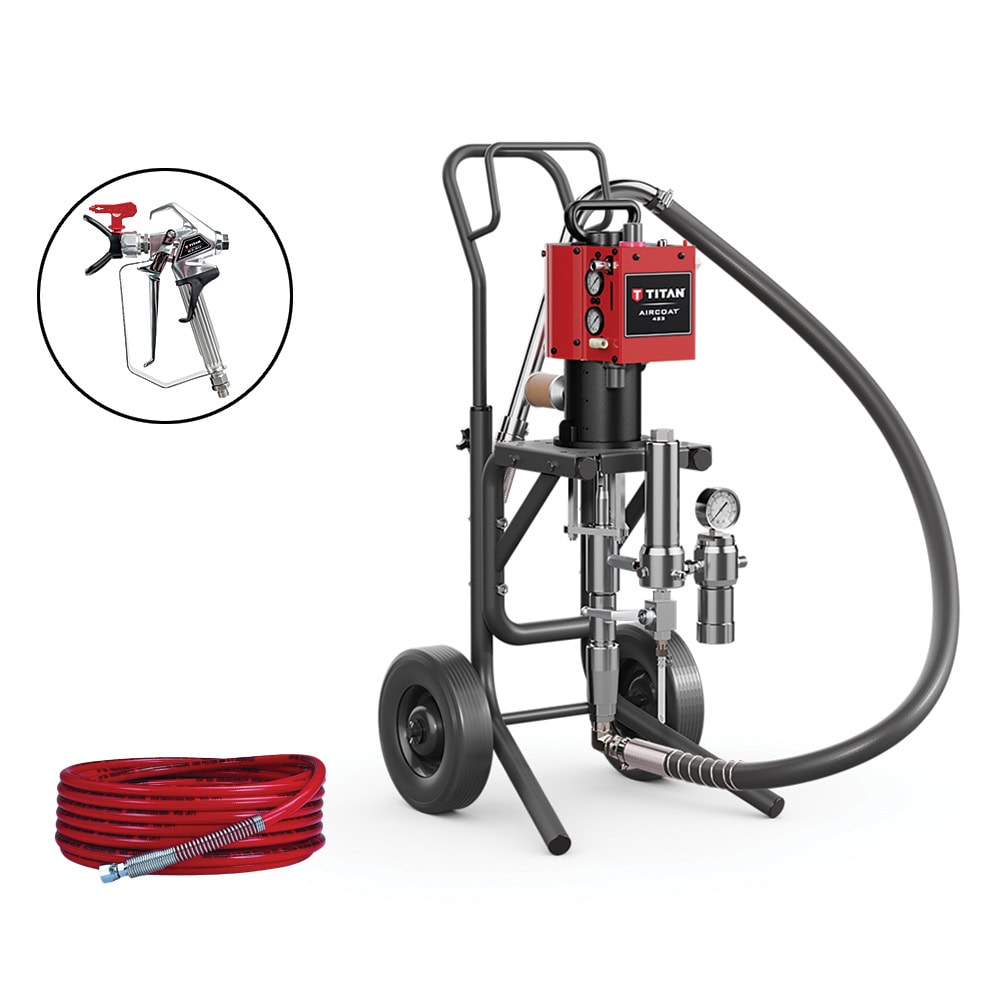

• Comes complete on trolley with 7.5m 3/16″ 4000 psi airless hose, RX-80 4 finger airless gun, 517 TR1 tip.

Specifications

• Ratio: 23:1
• Max Pressure: 2670 psi
• Max Flow Rate: 1.9 l/min
• Min Air requirement: 16scfm
• Max Tip Size: .021″
